Armored Breakout Cable

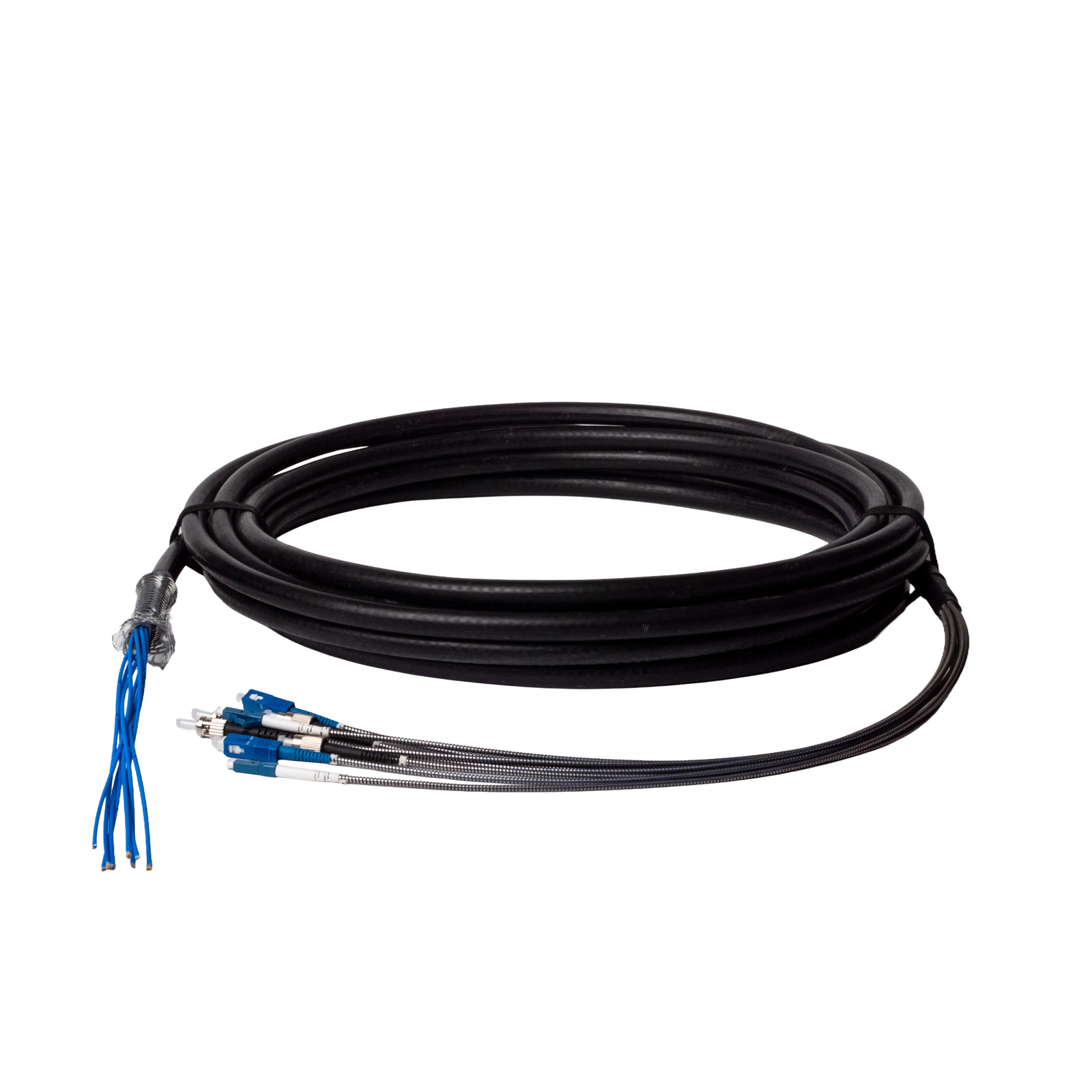

Armored Breakout Fiber Optic Cable with Metal Braid Protection

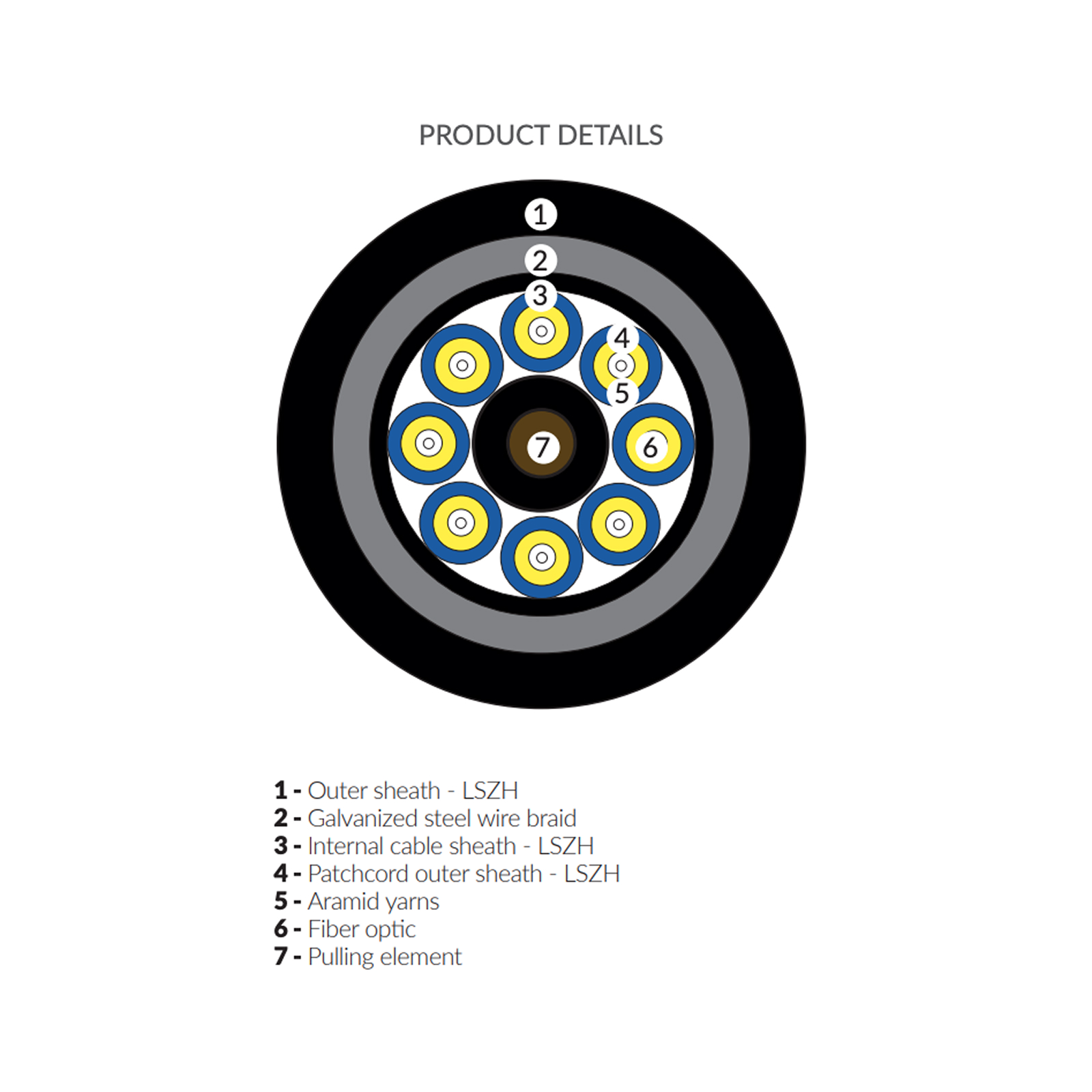

The armored breakout fiber optic cable is engineered for maximum mechanical protection in demanding network and data center environments. It consists of multiple pre-connectorized optical patchcords, helically (SZ) wrapped around an internal strength/pull element, and enclosed in a metal braid for superior protection against crushing, impact, and rodent damage. The outer sheath is available in LSZH, PVC, or PE, providing additional protection and suitability for diverse installation conditions.

This robust construction makes the armored breakout fiber optic cable ideal for preconnected installations, where durability, reliability, and high-density fiber connectivity are critical.

Key Features

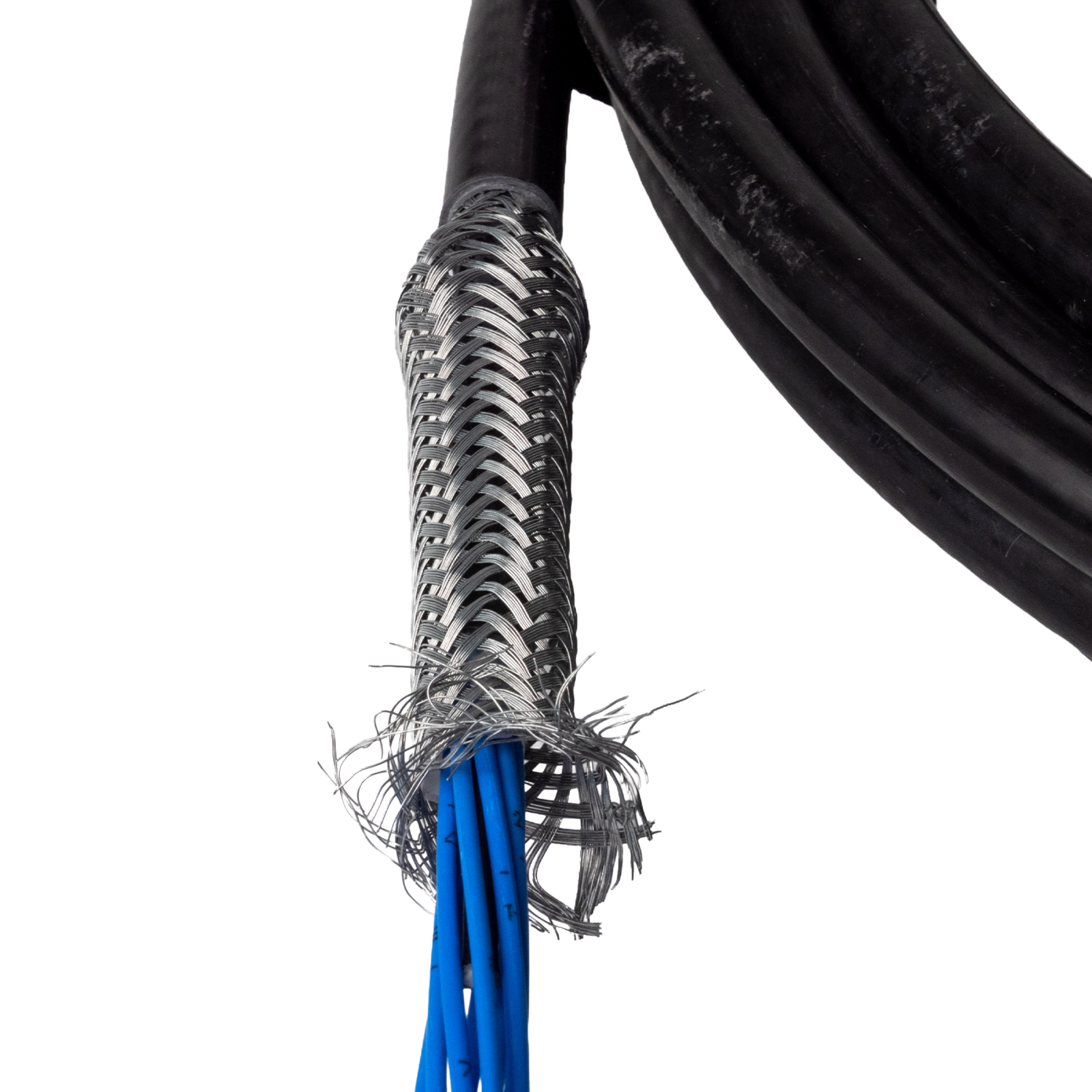

• Armored breakout fiber optic cable with metal braid protection

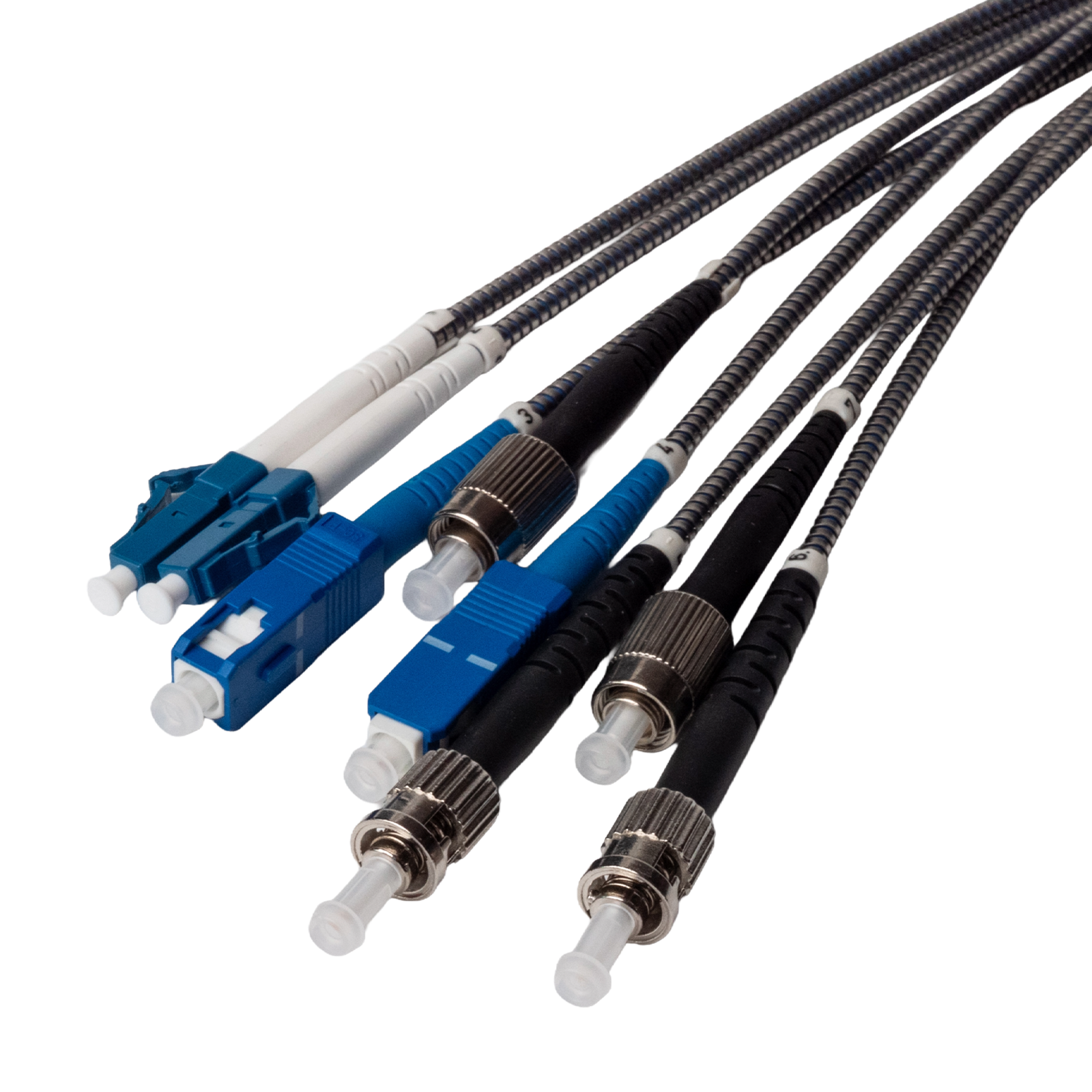

• Pre-connectorized optical patchcords on both ends for immediate deployment

• Helix (SZ) wrapped fibers around an internal pull element for structural strength

• Enhanced resistance to crushing, mechanical stress, and environmental hazards

• Suitable for single-mode fiber and multimode fiber applications

• External sheath options: LSZH, PVC, or PE for indoor and specialized installations

• Perfect for data centers, high-density networks, and harsh indoor environments

• Designed for preconnected fiber installations with ease of deployment

• Complies with industry standards: CEI/EN 60793, CEI/EN 60794-1

This armored breakout fiber optic cable provides a professional, high-performance, and reliable solution for mission-critical network environments, ensuring long-term durability and trouble-free fiber optic connections.

📄 Technical Data Sheet
